Citation: Doudou Gu, Guan Zhang, Jing Zou. High temperature thermo-photocatalysis driven carbon removal in direct biogas fueled solid oxide fuel cells[J]. Chinese Chemical Letters, ;2021, 32(11): 3548-3552. doi: 10.1016/j.cclet.2021.01.050 shu

High temperature thermo-photocatalysis driven carbon removal in direct biogas fueled solid oxide fuel cells

Doudou Gu ^{a, c} ,
Guan Zhang ^{a, c, *,} ,
Jing Zou ^{b, **,}

a.
Institute of Hydrogen and Fuel Cell, Harbin Institute of Technology, Shenzhen, Shenzhen 518055, China
b.
General Education Division, School of Humanities & Social Science, The Chinese University of Hong Kong, Shenzhen, Shenzhen 518172, China
c.
School of Civil and Environmental Engineering, Harbin Institute of Technology, Shenzhen, Shenzhen 518055, China

zhangguan@hit.edu.cn

zoujing@cuhk.edu.cn

Received Date: 17 January 2021
Revised Date: 26 January 2021
Accepted Date: 28 January 2021
Available Online: 2 February 2021

Figures(4)

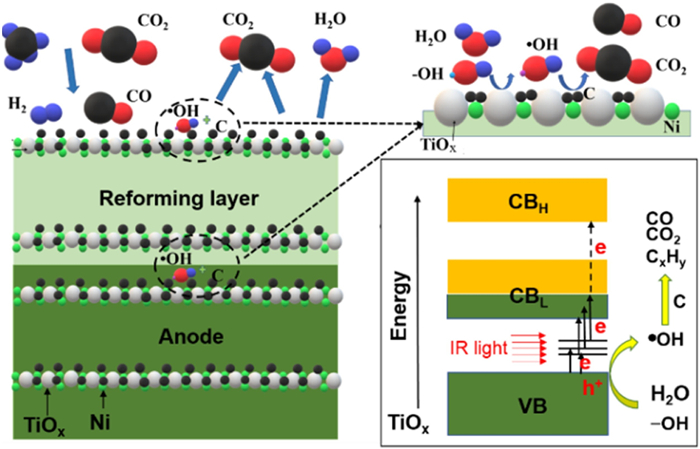

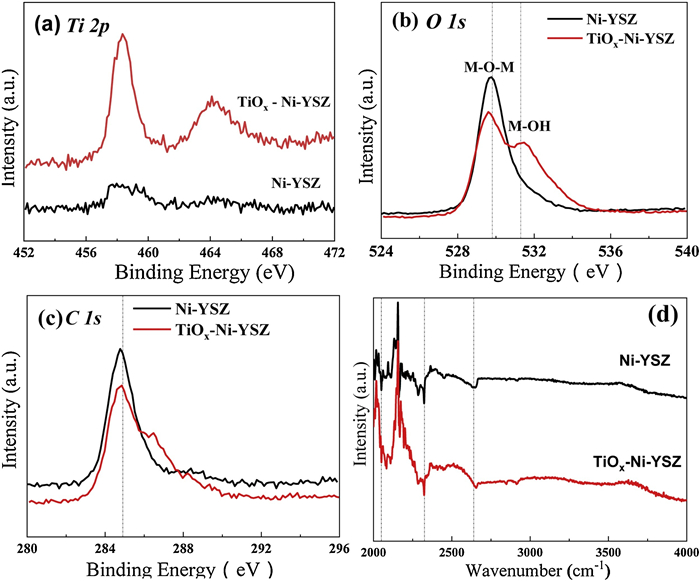

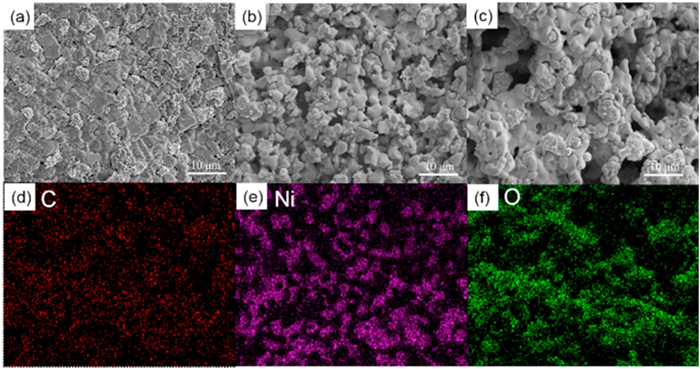

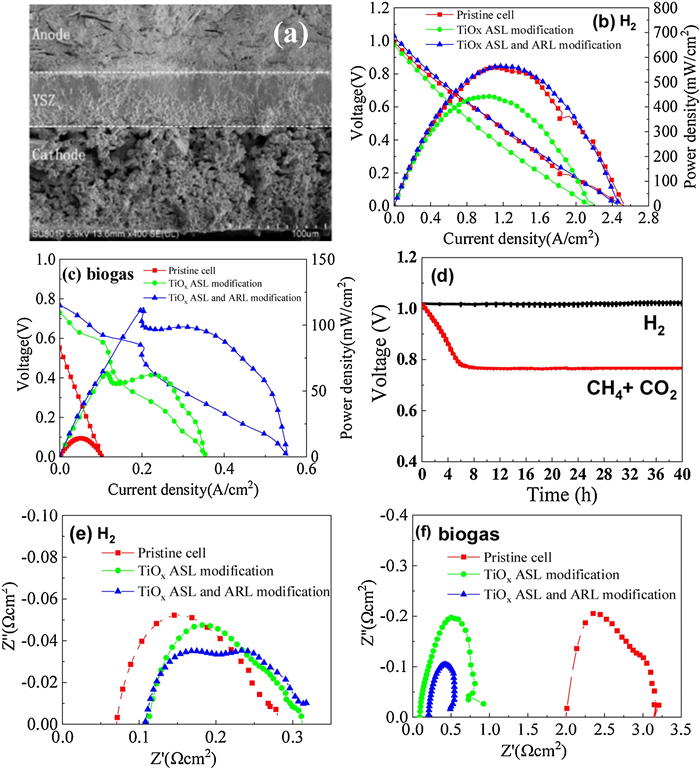

Solid oxide fuel cells (SOFCs) can directly convert renewable biogas into electricity with high efficiency at high temperature, however the long-term stability of SOFCs is significantly affected by the carbon deposition on the anode during cell operation. Herein, we report a novel carbon removal approach by high temperature infrared light driven photocatalytic oxidation. Upon the comparison of electrochemical performance of Ni-YSZ anode and TiO₂ modified Ni-YSZ anode in the state-of-the-art single cell (Ni-YSZ/YSZ/LSCM), the modified anodes exhibit markedly improved peak powder density with simulated biogas fuel (70% CH₄+ 30% CO₂) at 850 ℃ with less coking after 40 h operation. The high activity and carbon deposition resistance of the modified anode is possibly attributed to thein situ generated hydroxyl radical from the reduced TiO_x powder under high temperature infrared light excitation, which is supported by detailed analysis of microstructural information of anodes and the powder-based thermo-photocatalytic experiments.
- Thermo-photocatalysis,
- Infrared light excitation,
- Carbon removal,
- Biogas utilization,
- Solid oxide fuel cells
1. [1]
  W. Wang, R. Ran, Z. Shao, J. Power Sources 196 (2011) 90−97 doi: 10.1016/j.jpowsour.2010.07.033
2. [2]
  W. Wang, R. Ran, Z. Shao, Int. Hydrogen Energy 36 (2011) 755−764 doi: 10.1016/j.ijhydene.2010.09.048
3. [3]
  Z. Tao, G. Hou, N. Xu, Q. Zhang, H. Ding, Electrochim. Acta 150 (2014)55−61 doi: 10.1016/j.electacta.2014.10.126
4. [4]
  X. Yao, P. Li, B. Yu, et al., Int. Hydrogen Energy 42 (2017) 22192−22200 doi: 10.1016/j.ijhydene.2017.02.008
5. [5]
  N. Hou, T. Yao, P. Li, et al., ACS Appl. Mater. Interfaces 11 (2019) 6995−7005 doi: 10.1021/acsami.8b19928
6. [6]
  J. Ma, C. Jiang, P. A. Connor, M. Cassidy, J. T. S. Irvine, J. Mater. Chem. A 3 (2015) 19068−19076 doi: 10.1039/C5TA06421J
7. [7]
  B. J. M. Sarruf, J. E. Hong, R. Steinberger-Wilckens, P. E. V. de Miranda, Int. Hydrogen Energy 43 (2018) 6340−6351 doi: 10.1016/j.ijhydene.2018.01.192
8. [8]
  J. Qu, W. Wang, Y. Chen, X. Deng, Z. Shao, Applied Energy 164 (2016) 563–571 doi: 10.1016/j.apenergy.2015.12.014
9. [9]
  D. Yoon, A. Manthiram, Energy Environ. Sci. 7 (2014) 3069−3076 doi: 10.1039/C4EE01455C
10. [10]
  J. Qu, W. Wang, Y. Chen, et al., ChemSusChem 11 (2018) 3112−3119 doi: 10.1002/cssc.201801539
11. [11]
  Y. Chen, B. deGlee, Y. Tang, et al., Nature Energy 3 (2018) 1042−1050 doi: 10.1038/s41560-018-0262-5
12. [12]
  M. Zhang, J. He, Y. Chen, P-Y. Liao, M. Zhu, Chin. Chem. Lett. 31 (2020) 2721−2724 doi: 10.1016/j.cclet.2020.05.001
13. [13]
  G. Liu, J. Zhou, W. Zhao, Z. Ao, T. An, Chin. Chem. Lett. 31 (2020) 1966−1969 doi: 10.1016/j.cclet.2019.12.023
14. [14]
  B. Jing, Z. Ao, W. Zhao, et al., J. Mater. Chem. A 8 (2020) 20363−20372 doi: 10.1039/d0ta06060g
15. [15]
  H. Xu, J. Shi, S. Lyu, X. Lang, Chin. J. Catal. 41 (2020) 1468-1473 doi: 10.1016/S1872-2067(20)63640-3
16. [16]
  X. Li, X. Lang, J. Chem. Phys. 152 (2020) 044705 doi: 10.1063/1.5142512
17. [17]
  S. Hu, Y. Yu, Y. Guan, et al., Chin. Chem. Lett. 31 (2020) 2839−2842 doi: 10.1016/j.cclet.2020.08.021
18. [18]
  M. C. lee, W. Choi, J. Phys. Chem. B 106 (2002) 11818−11822 doi: 10.1021/jp026617f
19. [19]
  M. Q. Yang, L. Shen, Y. Lu, et al., Angew. Chem. Int. Ed. 58 (2019) 3077−3081 doi: 10.1002/anie.201810694
20. [20]
  C. Wang, S. Fang, S. Xie, Y. Zheng, Y. H. Hu, Chem 8 (2020) 7390−7394 doi: 10.1039/c9ta13275a
21. [21]
  B. Han, W. Wei, M. Li, K. Sun, Y. H. Hu, Chem. Commun. 55(2019) 7816−7819 doi: 10.1039/c9cc04193a
22. [22]
  L. Wang, X. Y. Liu, A. Wang, et al., Angew. Chem. Int. Ed. 59 (2020) 12909−12916 doi: 10.1002/anie.202001701
23. [23]
  G. Cui, W. Wang, M. Ma, et al., Nano Lett. 15 (2015) 7199−7203 doi: 10.1021/acs.nanolett.5b01581
24. [24]
  M. Wang, G. Tan, D. Zhang, et al., Appl. Catal. B: Environ. 254 (2019) 98−112 doi: 10.3390/plants8040098
25. [25]
  X. Xu, C. Randorn, P. Efstathiou, J. T. S. Irvine, Nature Mater. 11 (2012) 595−598 doi: 10.1038/nmat3312
26. [26]
  X. Zhang, G. Zhang, J. Zou, New. J. Chem. 42 (2018) 6084−6090 doi: 10.1039/C8NJ00560E
27. [27]
  G. Zhang, J. Zou, X. Xu, Adv. Sustainable Systems 2 (2018) 1700139 doi: 10.1002/adsu.201700139
