Citation: Jingyun Wang, Hao Wang, Hongyan Cui, Peng Sun, Xi Yang, Qixian Chen. Circumvent PEGylation dilemma by implementing matrix metalloproteinase-responsive chemistry for promoted tumor gene therapy[J]. Chinese Chemical Letters, ;2020, 31(12): 3143-3148. doi: 10.1016/j.cclet.2020.07.027 shu

Circumvent PEGylation dilemma by implementing matrix metalloproteinase-responsive chemistry for promoted tumor gene therapy

Jingyun Wang ^{a, b} ,
Hao Wang ^{a, b} ,
Hongyan Cui ^{a, b} ,
Peng Sun ^b ,
Xi Yang ^{c, *,} ,
Qixian Chen ^{b, *,}

a.
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 116024, China
b.
School of Bioengineering, Dalian University of Technology, Dalian 116024, China
c.
Department of Neurosurgery, Renji Hospital, School of Medicine, Shanghai Jiao Tong University, Shanghai 200127, China

woshi358539575@gmail.com

qixian@dlut.edu.cn

Received Date: 13 June 2020
Revised Date: 9 July 2020
Accepted Date: 14 July 2020
Available Online: 15 July 2020

Figures(6)

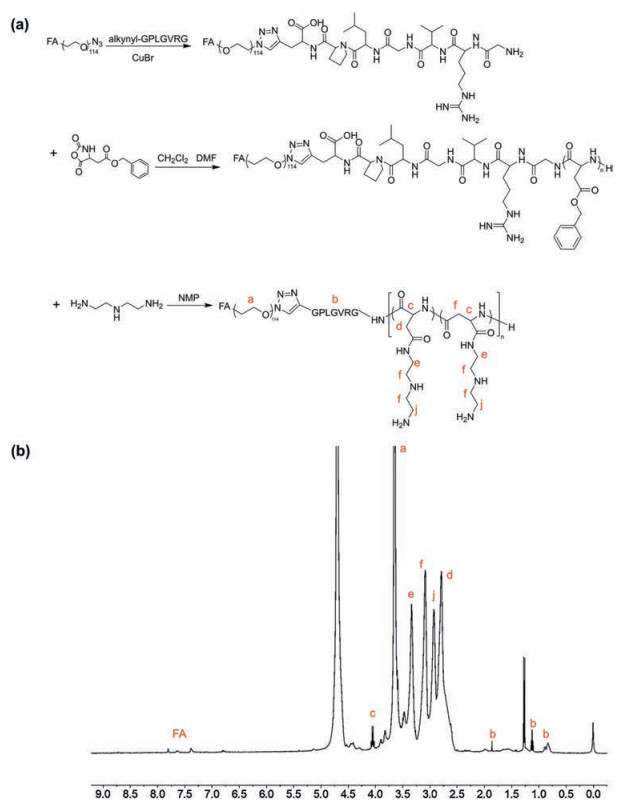

Surface modification by poly(ethylene glycol) (PEGylation) has been acknowledged as a powerful strategy in minimizing non-specific reactions for biomedical devices. Once applied into manufacture of drug/gene delivery systems, PEGylation has demonstrated to significantly improve their biocompatibility and stealthiness in physiological environment. Nonetheless, reluctant cell membrane affinities thus cellular uptake efficiencies owing to PEGylation brought up further issues that are imperative to be resolved. Pertain to this PEGylation dilemma, we attempted to introduce peptide (GPLGVRG) linkage between block copolymer of PEG-poly{N'-[N-(2-aminoethyl)-2-aminoethyl]aspartamide} PAsp(DET), wherein the cationic PAsp(DET) could self-assemble with pDNA into nanoscaled complex core. Noteworthy was the peptide linkage whose amino acids sequence could be specifically recognized and degraded by matrix metalloproteinases (MMPs) (overexpressed in extracellular milieu of tumors). Therefore, our subsequent studies validated facile detachment of PEGylation from the aforementioned polyplex micelles upon treatment of MMPs, which elicited improved cytomembrane affinities and cellular uptake efficiencies. In addition, promoted escape from endosome entrapment was also confirmed through direct endosome membrane destabilization by PAsp(DET), which was further elucidated to be attributable to dePEGylation as well as elevated charged density of PAsp(DET) in acidic endosomes. These benefits from dePEGylation eventually contributed to promoted gene expression at the affected cells and potent tumor growth suppression based on anti-angiogenic approach. Therefore, our developed strategy has provided a facile approach in overcoming the dilemma of PEGylation, which could be informative in design of drug/gene delivery systems.
- PEGylation,
- Tumor,
- Polyplex micelle,
- Gene delivery system,
- Matrix metalloproteinase
1. [1]
  L. Cong, F.A. Ran, D. Cox, et al., Nature 339(2013) 819-823.
2. [2]
  G.J. Hannon, Nature 418(2002) 244-251. doi: 10.1038/418244a
3. [3]
  U. Lachelt, E. Wagner, Chem. Rev. 115(2015) 11043-11078. doi: 10.1021/cr5006793
4. [4]
  Y. Lee, K. Kataoka, Adv. Polym. Sci. 249(2012) 95-134. doi: 10.1007/12_2011_129
5. [5]
  X. Guo, L. Huang, Acc. Chem. Res. 45(2012) 971-979. doi: 10.1021/ar200151m
6. [6]
  F. Mingozzi, K.A. High, Nat. Rev. Genet. 12(2011) 341-355. doi: 10.1038/nrg3027
7. [7]
  K. Miyata, N. Nishiyama, K. Kataoka, Chem. Soc. Rev. 41(2012) 2562-2574. doi: 10.1039/C1CS15258K
8. [8]
  D.W. Pack, A.S. Hoffman, S. Pun, et al., Nat. Rev. Drug Discov. 4(2005) 581-593. doi: 10.1038/nrg3027
9. [9]
  S.K. Samal, M. Dash, S. Van Vlierberghe, et al., Chem. Soc. Rev. 41(2012) 7147-7194. doi: 10.1039/c2cs35094g
10. [10]
  Y.N. Yue, C. Wu, Biomater. Sci. 1(2013) 152-170. doi: 10.1039/C2BM00030J
11. [11]
  J.A. Hubbell, A. Chilkoti, Science 337(2012) 303-305. doi: 10.1126/science.1219657
12. [12]
  J. Kopecek, Adv. Drug Deliv. Rev. 65(2013) 49-59.
13. [13]
  Q. Chen, K. Osada, T. Ishii, et al., Biomaterial 33(2012) 4722-4730. doi: 10.1016/j.biomaterials.2012.03.017
14. [14]
  S. Takeda, K. Miyata, M. Oba, et al., J. Am. Chem. Soc. 130(2008) 6001-6009. doi: 10.1021/ja800336v
15. [15]
  N. Johansson, M. Ahonen, V.M. Kähäri, Cell. Mol. Life Sci. 57(2000) 5-15. doi: 10.1007/s000180050495
16. [16]
  J. Xiong, H. Gao, J. Microencapsul. 34(2017) 440-453.
17. [17]
  Y. Lu, P.S. Low, Adv. Drug Deliv. Rev. 64(2012) 342-352. doi: 10.1016/j.addr.2012.09.020
18. [18]
  K. Osada, H. Oshima, D. Kobayashi, et al., J. Am. Chem. Soc. 132(2010) 12343-12348. doi: 10.1021/ja102739b
19. [19]
  G.S. Manning, Biophys. J. 91(2006) 3607-3616. doi: 10.1529/biophysj.106.089029
20. [20]
  T.A. Tockary, K. Osada, Q. Chen, et al., Macromolecules 46(2013) 6585-6592. doi: 10.1021/ma401093z
21. [21]
  K. Miyata, M. Oba, M. Nakanishi, et al., J. Am. Chem. Soc. 130(2008) 16287-16294. doi: 10.1021/ja804561g
22. [22]
  C. Chen, Y. Li, X. Yu, et al., Chin. Chem. Lett. 29(2018) 1609-1612.
23. [23]
  J. Peng, Q. Yang, Y. Xiao, et al., Adv. Funct. Mater. 29(2019) 1900004.
24. [24]
  J. Peng, T. Qi, J. Liao, et al., Nanoscale 4(2012) 2694-2704. doi: 10.1039/c2nr30147d
25. [25]
  Q. Zhu, M. Saeed, R. Song, et al., Chin. Chem. Lett. 31(2020) 1051-1059.
26. [26]
  Y. Song, D. Li, J. He, et al., Chin. Chem. Lett. 30(2019) 2027-2031.
27. [27]
  M.D. Weitzman, R.M. Linden, Adeno-associated virus biology, in: R. Snyder, P. Moullier (Eds.), Adeno-Associated Virus. Methods in Molecular Biology (Methods and Protocols), Vol 807, Humana Press, Totowa, 2012, pp. 1-23.
28. [28]
  M. Karimi, A. Ghasemi, P.S. Zangabad, et al., Chem. Soc. Rev. 45(2016) 1457-1501.
