Citation: Meijia Liu, Xiangling Ren, Xin Liu, Longfei Tan, Hui Li, Jing Wei, Changhui Fu, Qiong Wu, Jun Ren, Hongbo Li, Xianwei Meng. Luminescent silver nanoclusters for efficient detection of adenosine triphosphate in a wide range of pH values[J]. Chinese Chemical Letters, ;2020, 31(12): 3117-3120. doi: 10.1016/j.cclet.2020.06.024 shu

Luminescent silver nanoclusters for efficient detection of adenosine triphosphate in a wide range of pH values

Meijia Liu ^a ,
Xiangling Ren ^{b, c, d, *,} ,
Xin Liu ^{b, c} ,
Longfei Tan ^{b, c} ,
Hui Li ^{a, **,} ,
Jing Wei ^a ,
Changhui Fu ^{b, c} ,
Qiong Wu ^{b, c} ,
Jun Ren ^b ,
Hongbo Li ^a ,
Xianwei Meng ^{b, c, *,}

a.
Experimental Center of Advanced Materials, School of Materials Science & Engineering, Beijing Institute of Technology, Beijing 100081, China
b.
Laboratory of Controllable Preparation and Application of Nanomaterials, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China
c.
CAS Key Laboratory of Cryogenics, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China
d.
University of Chinese Academy of Sciences, Beijing 100049, China

^**

renxiangling@mail.ipc.ac.cn

hongbo.li@bit.edu.cn

mengxw@mail.ipc.ac.cn

Received Date: 30 April 2020
Revised Date: 10 June 2020
Accepted Date: 15 June 2020
Available Online: 16 June 2020

Figures(4)

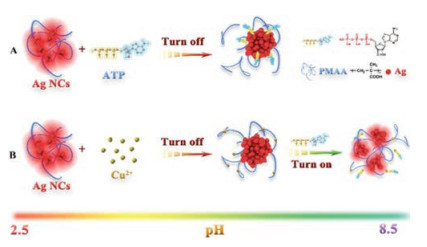

In this work, polymethacrylic acid (PMAA)-templated silver nanoclusters (Ag NCs) were developed as the fluorescent probe for the efficient and sensitive detection of adenosine triphosphate (ATP) in a wide range of pH values. The fluorescence intensity of the Ag NCs could keep stable with pH values ranging from 2.5 to 9.3. The detection of ATP was based on the quenching of the fluorescent Ag NCs in the presence of ATP. The fluorescence quenching of the Ag NCs with increasing ATP concentration was studied at pH 2.5, 4.5, 7.0 and 8.5 which involved a wide pH environment in body fluids. The limit of detection (LOD) for ATP was as low as 0.1 mmol/L in an acidic environment with pH of 2.5 and all the linear correlation coefficients were satisfactory under wide-span pH values from 2.5 to 8.5. In addition, the sensitive determination of ATP was also achieved by adding copper ions (Cu²⁺). The high selectivity and rapid detection process proved that the fluorescent probe had great potential to detect ATP in biological samples under different pH conditions.
- Adenosine triphosphate,
- Silver nanoclusters,
- Copper ions,
- Wide pH environment,
- Fluorescence detection
1. [1]
  N. Reta, C.P. Saint, A. Michelmore, B. Prieto-Simon, N.H. Voelcker, ACS Appl. Mater. Interfaces 10(2018) 6055-6072. doi: 10.1021/acsami.7b13943
2. [2]
  M.H. Lin, P. Song, G.B. Zhou, et al., Nat. Protoc. 11(2016) 1244-1263. doi: 10.1038/nprot.2016.071
3. [3]
  Q. Wang, X.Z. Wang, H. Song, W.M. Zhao, J.Y. Jing, Opt. Laser Technol. 124(2020) 106002. doi: 10.1016/j.optlastec.2019.106002
4. [4]
  X.M. Li, Y. Wang, L.L. Wang, Q.L. Wei, Chem. Commun. 50(2014) 5049-5052. doi: 10.1039/C4CC01374C
5. [5]
  M. Li, J.M. Zhang, S. Suri, et al., Anal. Chem. 84(2012) 2837-2842. doi: 10.1021/ac203325z
6. [6]
  J. Li, Z. Skeete, S.Y. Shan, et al., Anal. Chem. 87(2015) 10698-10702. doi: 10.1021/acs.analchem.5b03456
7. [7]
  L.E.A. Young, C.O. Brizzee, J.K.A. Macedo, et al., Carbohydr. Polym. 230(2020) 115651. doi: 10.1016/j.carbpol.2019.115651
8. [8]
  L. Wagmann, H.H. Maurer, M.R. Meyer, J. Chromatogr. A 1521(2017) 123-130. doi: 10.1016/j.chroma.2017.09.034
9. [9]
  P.J. Zhu, Y.Y. Zhang, S.X. Xu, X.F. Zhang, Chin. Chem. Lett. 30(2019) 58-62. doi: 10.1016/j.cclet.2018.02.003
10. [10]
  Y.Y. Li, Y.N. Ban, R.H. Wang, et al., Chin. Chem. Lett. 31(2020) 443-446. doi: 10.1016/j.cclet.2019.07.047
11. [11]
  J.M. Li, H.H. Wu, I. Santana, M. Fahlgren, J.P. Giraldo, ACS Appl. Mater. Interfaces 10(2018) 28279-28289. doi: 10.1021/acsami.8b07179
12. [12]
  X.L. Ren, M.Q. Wang, X. He, et al., Chin. Chem. Lett. 29(2018) 1865-1868. doi: 10.1016/j.cclet.2018.12.007
13. [13]
  Y. Yang, X.L. Ren, Z.N. Sun, et al., Chin. Chem. Lett. 29(2018) 895-898. doi: 10.1016/j.cclet.2018.04.018
14. [14]
  Z.Q. Bai, X.L. Ren, Z. Gong, et al., Chin. Chem. Lett. 28(2017) 1901-1904. doi: 10.1016/j.cclet.2017.05.005
15. [15]
  X. Fu, X. Fu, W.Y. Li, Y.P. Chen, Z.X. Cai, J. Biomed. Nanotechnol. 15(2019) 1232-1240. doi: 10.1166/jbn.2019.2766
16. [16]
  R.R. Mokarram, S.A. Mortazavi, M.B.H. Najafi, F. Shahidi, Food Res. Int. 42(2009) 1040-1045. doi: 10.1016/j.foodres.2009.04.023
17. [17]
  H.M. Fadda, T. Sousa, A.S. Carlsson, et al., Mol. Pharm. 7(2010) 1527-1532. doi: 10.1021/mp100198q
18. [18]
  R. Mo, Q. Sun, J.W. Xue, et al., Adv. Mater. 24(2012) 3659-3665. doi: 10.1002/adma.201201498
19. [19]
  J.J. Deng, K. Wang, M. Wang, P. Yu, L.Q. Mao, J. Am. Chem. Soc. 139(2017) 5877-5882. doi: 10.1021/jacs.7b01229
20. [20]
  J. Tian, X. Zeng, X.J. Xie, et al., J. Am. Chem. Soc. 137(2015) 6550-6558. doi: 10.1021/jacs.5b00981
21. [21]
  Q.W. Song, M.S. Peng, L. Wang, D.C. He, J. Ouyang, Biosens. Bioelectron. 77(2016) 237-241. doi: 10.1016/j.bios.2015.09.008
22. [22]
  J.H. Zhu, C. Yu, Y. Chen, et al., Chem. Commun. 53(2017) 4342-4345. doi: 10.1039/C7CC01346A
23. [23]
  C.X. Song, Y.X. Xiao, K.P. Li, X.Y. Zhang, Y. Lu, Chin. Chem. Lett. 30(2019) 1249-1252. doi: 10.1016/j.cclet.2019.03.055
24. [24]
  X. Nie, X. Ning, Y.Y. Zhao, et al., Chin. Chem. Lett. 28(2017) 619-624. doi: 10.1016/j.cclet.2016.11.013
25. [25]
  Q.Y. Cai, J. Ge, H.H. Xu, et al., Anal. Methods 9(2017) 2710-2714. doi: 10.1039/C7AY00424A
26. [26]
  Y. Huo, L. Qi, X.J. Lv, et al., Biosens. Bioelectron. 78(2016) 315-320.
27. [27]
  J.H. Yoon, S.M. Kim, H.J. Park, et al., Biosens. Bioelectron. 150(2020) 111946. doi: 10.1016/j.bios.2019.111946
28. [28]
  J. Liu, X.L. Ren, X.W. Meng, Z. Fang, F.Q. Tang, Nanoscale 5(2013) 10022-10028. doi: 10.1039/c3nr03329e
29. [29]
  X.M. Wang, S.P. Xu, W.Q. Xu, Nanoscale 3(2011) 4670-4675. doi: 10.1039/c1nr10590f
30. [30]
  P.C. Wu, C.Y. Chen, C.W. Chang, New J. Chem. 42(2018) 3459-3464. doi: 10.1039/C7NJ04399F
31. [31]
  M. Zhang, S.M. Guo, Y.R. Li, P. Zuo, B.C. Ye, Chem. Commun. 48(2012) 5488-5490. doi: 10.1039/c2cc31626a
32. [32]
  J.N. Xu, C.Y. Wei, Biosens. Bioelectron. 87(2017) 422-427. doi: 10.1016/j.bios.2016.08.079
33. [33]
  T. Sakamoto, A. Ojida, I. Hamachi, Chem. Commun. (2009) 141-152.
34. [34]
  K. Chaiendoo, T. Tuntulani, W. Ngeontae, Sens. Actuators B:Chem. 207(2015) 658-667. doi: 10.1016/j.snb.2014.10.062
35. [35]
  L. Shang, S.J. Dong, J. Mater. Chem. A 18(2008) 4636-4640. doi: 10.1039/b810409c
36. [36]
  L. Gui, J.H. Zhou, L. Zhou, S.H. Wei, J. Mater. Chem. B 6(2018) 2078-2088.
37. [37]
  Z.S. Qian, L.J. Chai, Y.Y. Huang, et al., Biosens. Bioelectron. 68(2015) 675-680.
