Citation: Kouwer Paul H.J., de Almeida Paula, ven den Boomen Onno, Eksteen-Akeroyd Zaskia H., Hammink Roel, Jaspers Maarten, Kragt Stijn, Mabesoone Mathijs F.J., Nolte Roeland J.M., Rowan Alan E., Rutten Martin G.T.A., Le Sage Vincent A.A., Schoenmakers Daniël C., Xing Chengfen, Xu Jialiang. Controlling the gelation temperature of biomimetic polyisocyanides[J]. Chinese Chemical Letters, ;2018, 29(2): 281-284. doi: 10.1016/j.cclet.2017.11.002 shu

Controlling the gelation temperature of biomimetic polyisocyanides

Institute for Molecules and Materials, Radboud University, Nijmegen 6525 AJ, The Netherlands

Corresponding author: Kouwer Paul H.J., p.kouwer@science.ru.nl Nolte Roeland J.M., r.nolte@science.ru.nl Rowan Alan E., alan.rowan@uq.edu.au
Received Date: 21 August 2017
Revised Date: 1 November 2017
Accepted Date: 3 November 2017
Available Online: 8 February 2017

Figures(4)

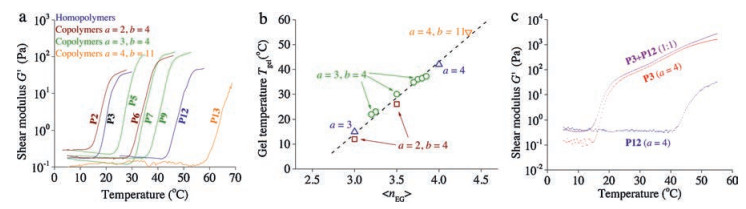

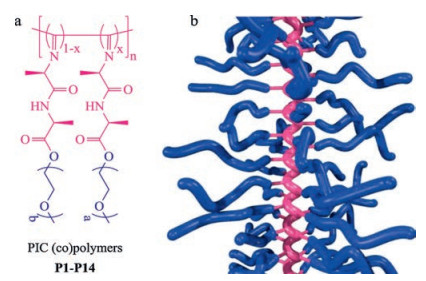

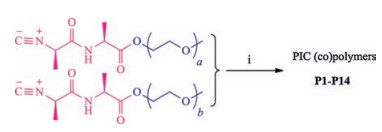

Thermosensitive polymers show an entropy-driven transition from a well-solvated to a poorly solvated polymer chain, resulting in a more compact globular conformation. The transition at the lower critical solution temperature (LCST) is often sharp, which allows for a wide range of smart material applications. At the LCST, oligo(ethylene glycol)-substituted polyisocyanides (PICs) form soft hydrogels, composed of polymer bundles similar to biological gels, such as actin, fibrin and intermediate filaments. Here, we show that the LCST of PICs strongly depends linearly on the length of the ethylene glycol (EG) tails; every EG group increases the LCSTand thus the gelation temperature by nearly 30℃. Using a copolymerisation approach, we demonstrate that we can precisely tailor the gelation temperature between 10℃ and 60℃ and, consequently, tune the mechanical properties of the PIC gels.
- Smart materials,
- Lower critical solution temperature,
- Polyisocyanides,
- Mechanical properties,
- Biomimetic polymers
1. [1]
  D. Roy, W.L.A. Brooks, B.S. Sumerlin, Chem. Soc. Rev. 42(2013) 7214-7243. doi: 10.1039/c3cs35499g
2. [2]
  M.A. Ward, T.K. Georgiou, Polymers 3(2011) 1215. doi: 10.3390/polym3031215
3. [3]
  N. Vanparijs, L. Nuhn, B.G. De Geest, Chem. Soc. Rev. 46(2017) 1193-1239. doi: 10.1039/C6CS00748A
4. [4]
  X. He, M. Aizenberg, O. Kuksenok, J. Aizenberg, et al., Nature 487(2012) 214-218. doi: 10.1038/nature11223
5. [5]
  J.S. Scarpa, D.D. Mueller, I.M. Klotz, J. Am. Chem. Soc. 89(1967) 6024-6030. doi: 10.1021/ja01000a006
6. [6]
  D.W. Urry, Sci. Am. 272(1995) 64-69.
7. [7]
  K. Kobayashi, C.I. Huang, T.P. Lodge, Macromolecules 32(1999) 7070-7077. doi: 10.1021/ma990242n
8. [8]
  G. Chen, A.S. Hoffman, Nature 373(1995) 49-52. doi: 10.1038/373049a0
9. [9]
  S. Aoshima, H. Oda, E. Kobayashi, J. Polym. Sci. A:Polym. Chem. 30(1992) 2407-2413. doi: 10.1002/pola.1992.080301115
10. [10]
  S. Han, M. Hagiwara, T. Ishizone, Macromolecules 36(2003) 8312-8319. doi: 10.1021/ma0347971
11. [11]
  J.F. Lutz, J. Polym. Sci. A:Polym. Chem. 46(2008) 3459-3470. doi: 10.1002/(ISSN)1099-0518
12. [12]
  H.R. Allcock, S.R. Pucher, M.L. Turner, R.J. Fitzpatrick, Macromolecules 25(1992) 5573-5577. doi: 10.1021/ma00047a002
13. [13]
  T. Bauer, C. Slugovc, J. Polym. Sci. A:Polym. Chem. 48(2010) 2098-2108. doi: 10.1002/pola.v48:10
14. [14]
  N. Sakai, M. Jin, S.I. Sato, T. Satoh, T. Kakuchi, Polym. Chem. 5(2014) 1057-1062. doi: 10.1039/C3PY00972F
15. [15]
  J.F. Lutz, A. Hoth, Macromolecules 39(2006) 893-896. doi: 10.1021/ma0517042
16. [16]
  P.H.J. Kouwer, M. Koepf, V.A.A. Le Sage, et al., Nature 493(2013) 651-655. doi: 10.1038/nature11839
17. [17]
  M. Jaspers, A.C.H. Pape, I.K. Voets, et al., Biomacromolecules 17(2016) 2642-2649. doi: 10.1021/acs.biomac.6b00703
18. [18]
  M. Jaspers, M. Dennison, M.F.J. Mabesoone, et al., Nat. Commun. 5(2014) 5808.
19. [19]
  M. Jaspers, P.H.J. Kouwer, Submitted (2017).
20. [20]
  R.K. Das, V. Gocheva, R. Hammink, O.F. Zouani, A.E. Rowan, Nat. Mater. 15(2016) 318-325. doi: 10.1038/nmat4483
21. [21]
  M. Koepf, H.J. Kitto, E. Schwartz, et al., Eur. Polym. J. 49(2013) 1510-1522. doi: 10.1016/j.eurpolymj.2013.01.009
22. [22]
  G. Hu, W. Li, Y. Hu, et al., Macromolecules 46(2013) 1124-1132. doi: 10.1021/ma302536t
23. [23]
  A. Van Beijnen, R. Nolte, W. Drenth, A. Hezemans, P. Van de Coolwijk, Macromolecules 13(1980) 1386-1391. doi: 10.1021/ma60078a011
24. [24]
  M. Jaspers, A.E. Rowan, P.H.J. Kouwer, Adv. Funct. Mater. 25(2015) 6503-6510. doi: 10.1002/adfm.v25.41
25. [25]
  M. Jaspers, S.L.P. Vaessen, P. van Schayik, et al., Nat. Commun. 8(2017) 15478. doi: 10.1038/ncomms15478
26. [26]
  J.P. Gong, Soft Matter 6(2010) 2583-2590. doi: 10.1039/b924290b
27. [27]
  J.P. Gong, Y. Katsuyama, T. Kurokawa, Y. Osada, Adv. Mater. 15(2003) 1155-1158. doi: 10.1002/adma.200304907
28. [28]
  D.C. Schoenmakers, A.E. Rowan, P.H.J. Kouwer, Submitted (2017).
